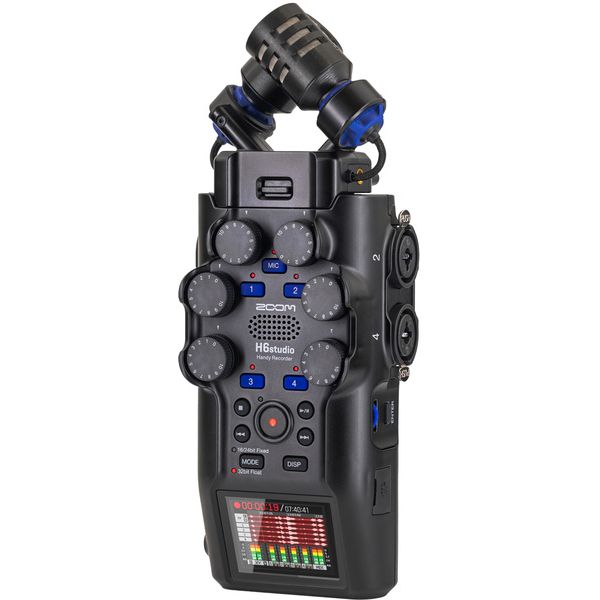

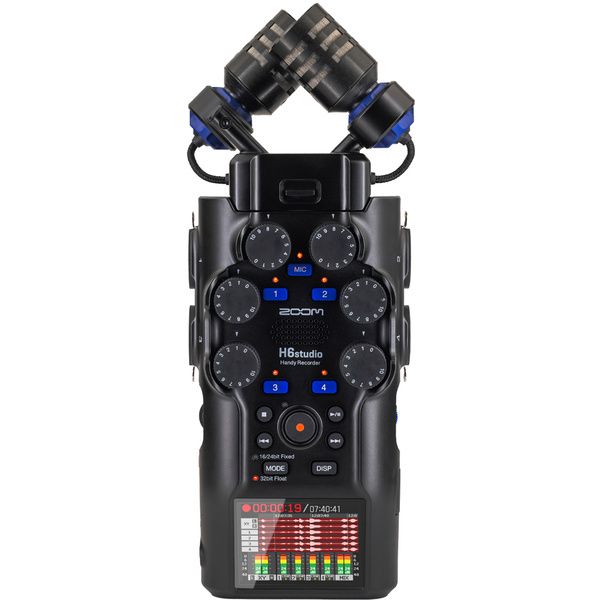

Zoom H6studio

Portable Multi-Channel Recorder

• No levelling required thanks to 32-bit float converter technology with dual AD converter (132dB dynamic range) and F-series preamplifiers
• System with interchangeable microphone capsules (Capsule System 3.0)
• Compatible with SSH-6e, EXH-6e, XYH-6e
• XYH-5s X/Y microphone capsule included (19.4 mm large diaphragm, 90° XY stereo configuration, max. 140 dB SPL)
• Recording formats: 16-bit/24-bit WAV fixed or 32-bit float with up to 192 kHz
• Storage medium: microSDHC cards up to 32 GB, microSDXC cards up to 2 TB (not included)
• Simultaneous recording of up to 8 tracks and playback of up to 6 tracks

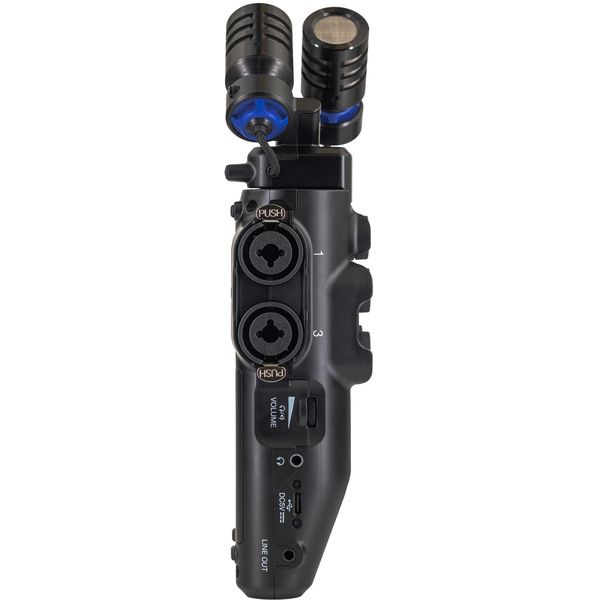

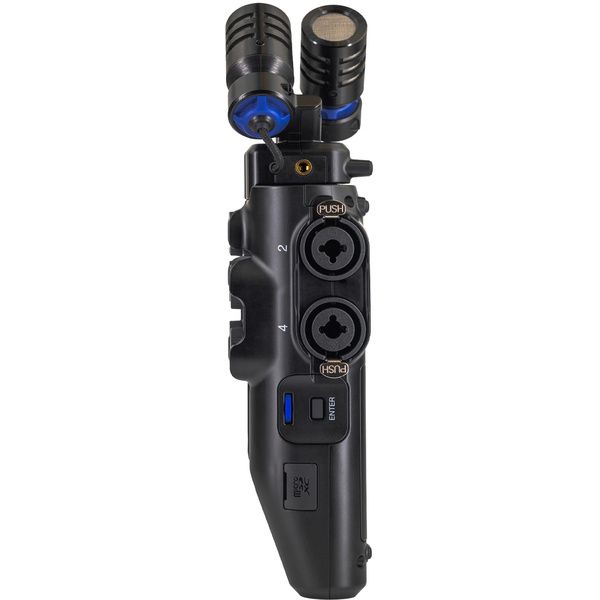

• 4x XLR/TRS combo jack with F-series preamplifier for microphone and line signals
• +48V phantom power switchable
• Stereo line input: 3.5 mm jack, plug-in power
• Stereo line output: 3.5 mm jack
• Stereo headphone output: 3.5 mm jack
• Built-in speaker
• 2″ colour display with level and waveform display
• Timecode synchronisation via Zoom BTA-1 (not included) or TCA-1 adapter (not included)
• Recording and streaming via USB-C to Mac, PC, iOS and Android (6 inputs and 2 outputs)

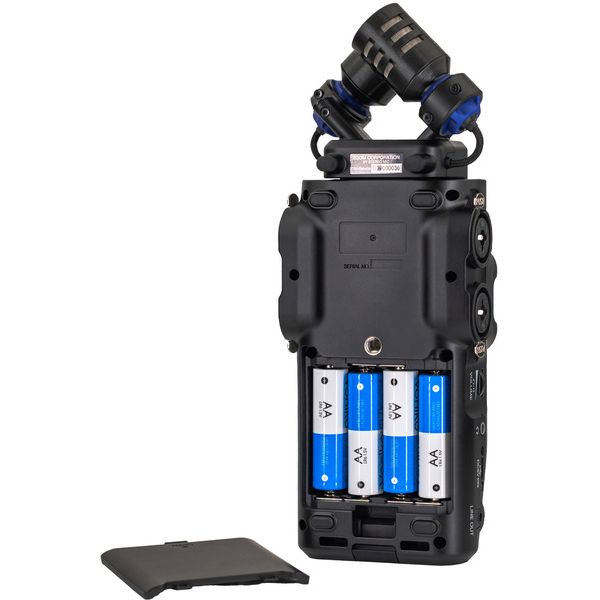

• Power supply via 4x AA batteries (not included)
• Zoom AD-17 power supply (not included) or USB-C port
• Dimensions: (L x W x H) 221 x 83 x 54.5 mm
• Weight (with batteries): 477 g
• Includes XYH-5s microphone capsule
