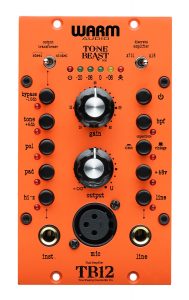

Warm Audio TB12-500

Warm Audio TB12500

Specifications :

• Utilizes premium grade CineMag USA Transformers
• 71db of gain.
• Transformer selection provides both Steel and 50% Nickel CineMag output transformers for varying character.
• Transformer bypass switch allows for removal of the output transformer from the circuit.
• Discrete Opamp selection allows for choosing between a 1731(vintage) and 918(cleaner) style .opamp. These are socketed/swappable with your choice of 2520 6 pin footprint opamps.
• Impedance switch labeled TONE to switch between 150 and 600 ohms input impedance. Changes the Tone of all inputs (Mic, Line and Hi-Z.).
• 2 Meg Ohm True HI-Z input on front panel sends instrument signal through entire circuit including both Cinemag Transformers and the discrete operational amplifier. Great for guitars, bass, keyboards and other instruments that have a 1/4″ output jack.
• Capacitor selection between Tantalum and Electrolytic for different characters.
• 80hz hipass filter.
• Polarity Reverse.
• +48V phantom power.
• Output attenuation allowing for saturation flexibility of both the opamps and transformers.
• ¼” insert for the use of inline compressors, eq’s etc.
• Balanced XLR mic, balanced TRS line, and ¼” instrument inputs.
• -20db Pad.
• LED VU Meter.
• Compatible with standard 500 series racks.
