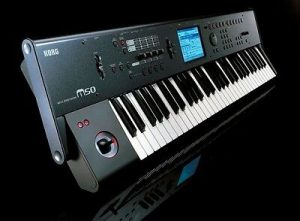

Korg M50 – 73

Prachtige synthesizer met Korg M3 sounds.

• 73-key semi-weighted Natural Touch keyboard
• 5.7 inch TouchView GUI, 320 x 240 dot display
• Controllers: Joystick, [SW1], [SW2]
• Damper Pedal (half damper pedaling supported), Assignable Switch, Assignable Pedal
• Synthesis Technology:
• EDS (Enhanced Definition Synthesis)
• Tone Generator:
• 256 Mbyte (when converted to 16-bit linear format)
• 1,077 Multisamples
• 1,609 Drum Samples
• Maximum Polyphony:
• 80 voices, 80 oscillators max, single mode
• 40 voices, 80 oscillators max, double mode
• Sounds:
• Programs: 640 total locations, 608 preloaded
• Combinations: 512 total locations, 384 preloaded
• Drum kits: 48 total locations, 32 preloaded
• GM: 256 GM2 programs, 9 GM2 drum kits
• Program Structure EDS
• Oscillator:
• OSC1 (Single), OSC1+2 (Double)
• Stereo multisamples are supported
• 4 velocity zones per oscillator, with switching, crossfades, and layers
• Filters:
• Four types of filter routing (single, serial, parallel, 24 dB)
• Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
• Driver:
• Per-voice nonlinear driver and low boost
• EQ:
• 3 bands, with sweepable mid
• Modulation:
• For each voice – two envelope generators (Filter & Amp)
• 2 LFOs
• 2 key tracking generators (Filter & Amp)
• 2 AMS mixers
• Combination structure
• Up to 16 timbres
• For each Timbre – keyboard and velocity split/layer/crossfade
• INT, OFF, EXT, and EX2 MIDI status settings
• 3-band EQ with sweepable mid
• Pitch/Transpose
• Use OSC1, 2, or Both
• Force Osc Mode (PRG, MONO, LEGATO, POLY)
• Portamento and Bend range settings
• Controller filters
• Modifications to the program settings via the Tone Adjust function
• Drum Kit Structure
• Stereo and mono drum samples
• 4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer)
• Exclusive keygroups
• Per key 3-band EQ, Drive, Lo Boost, filter, and level offsets
• Effects
• 5 Insert Effects (stereo in/out), 2 Master Effects (stereo in/out), 1 Total Effect (stereo in/out) are available simultaneously
• 2 effect control busses, 2 effect common LFOs
• 170 types (can be used for Insert/Master/Total.) Note: double-size effects cannot be used as a Total effect.
• Effects Presets: Up to 32 per Effect
• 3-band Track EQ (High, low, and sweepable mid band) per program in Program Mode, per timbre in Combination mode (16 total), and per track in Sequencer mode (16 total)
• Sequencer
• 16-track MIDI sequencer with 480 ppq resolution
• 128 Songs, 20 Cue Lists, 210,000 notes (max)
• Tempo: 40.00 ” 300.00 BPM (1/100 resolution)
• 16 preset/16 user Template Songs
• 522 preset patterns, 100 user patterns (per Song)
• Cue List function:
• 20 cue lists
• Songs can be arranged consecutively or repeatedly in up to 99 steps
• A cue list can be converted back into a song
• Standard MIDI File (SMF) format 0 and 1 available
• Auto Song Setup function (One Touch Record) for easily going from a Program or Combination into record-ready status
• Dual Polyphonic Arpeggiator
• Two arpeggiators, useable simultaneously
• (Combination, Sequencer modes)
• 5 preset arpeggio patterns; 216 user arpeggio patterns (200 preloaded)
• RPPR (Realtime Pattern Play/Recording) – a set of 100 patterns are available per song
• Drum Track
• 671 preset patterns/1,000 user patterns
• Patterns created in Sequencer mode can be converted to drum track user patterns
• Trigger Mode (Immediate, Wait for Keyboard), Sync (On, Off) and Zone (Key and Velocity) settings can be specified.
• Program selection, 3-band EQ and effect bussing available
