Ferrofish Pulse16 AE

AD/DA Converter

• DAC ESS ES9017 / ADC: ESS ES9840Q
• 32-bit / 192 kHz

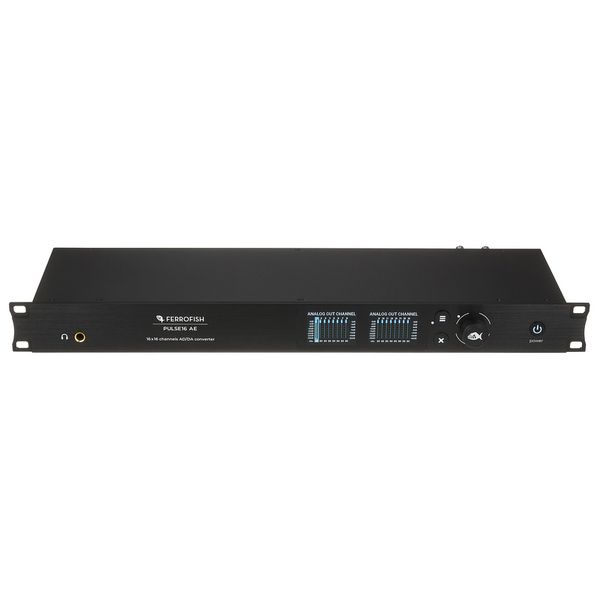

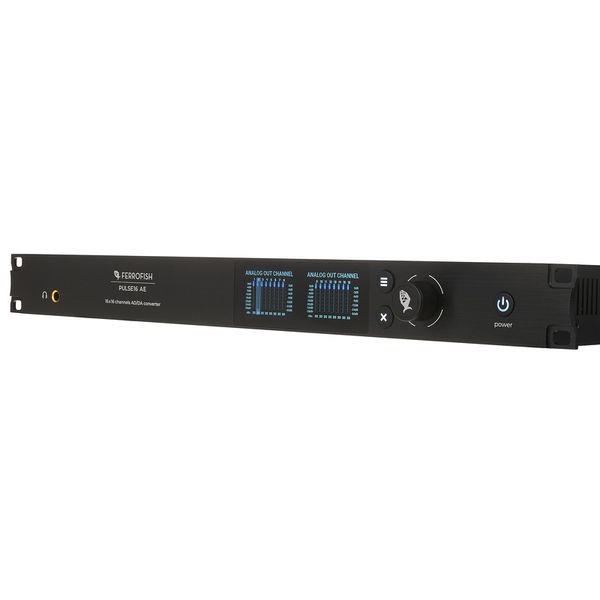

• Two colour displays for levels and settings for a complete overview of all levels and settings on the device
• Expandable with optional DSP stick (not included)
• Single-channel routing
• USB-C for RemoteFish, supports MIDI controller commands
• Switch for active jitter reduction
• Fanless
• Format: 19″ / 1 U
• Dimensions: (W x H x D): 500 x 44 x 190 mm
• Weight: 2 kg

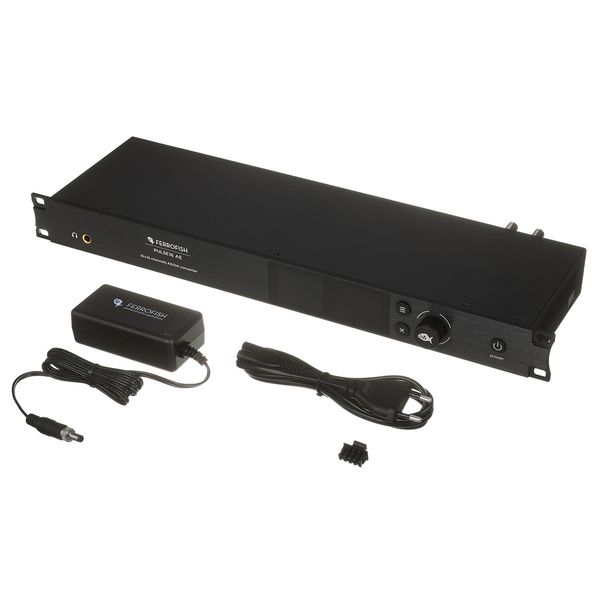

• Includes external power supply

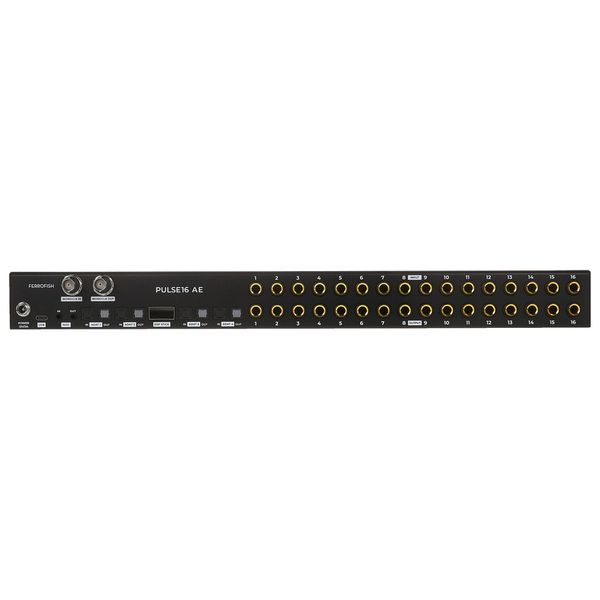

Connectors:

• 16 line inputs: 6.3 mm jack
• 16 line outputs: 6.3 mm jack
• Stereo headphone output
• Four ADAT inputs and outputs
• MIDI 3.5 mini jack input and output
• Word clock input and output: BNC
• USB-C
